※Characteristic description

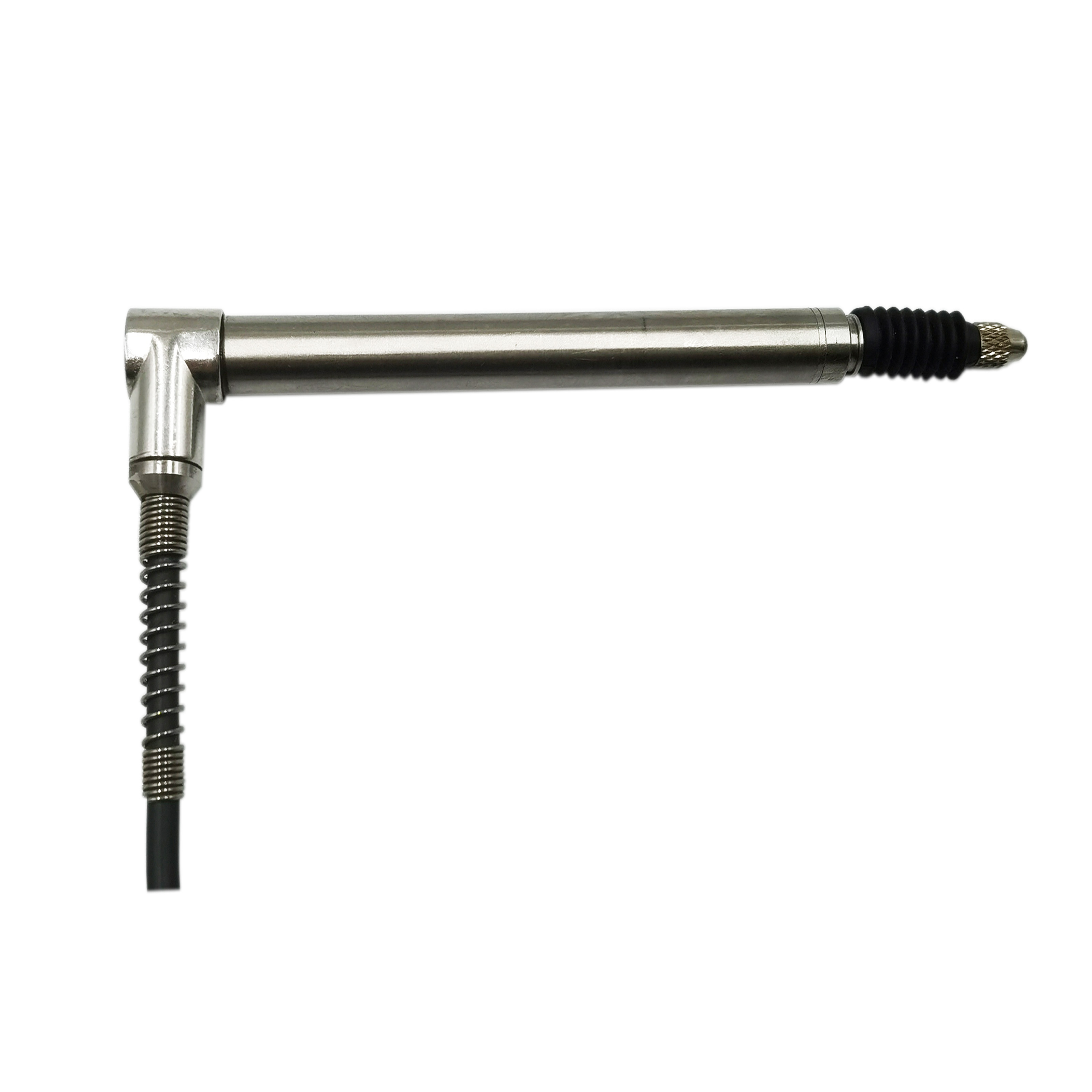

External diameter Φ 8mm, stainless steel 304 shell, rebound type
Built in precision linear bearing, good repeatability, high resolution
The probe is silicon nitride ceramic ball with good wear resistance
DC single power supply, built-in high-performance signal demodulator
Product size is short, suitable for use in small space
※ Application field
Robot; Shaft diameter detection; Precision displacement measurement; Glass production testing; Automobile parts inspection?

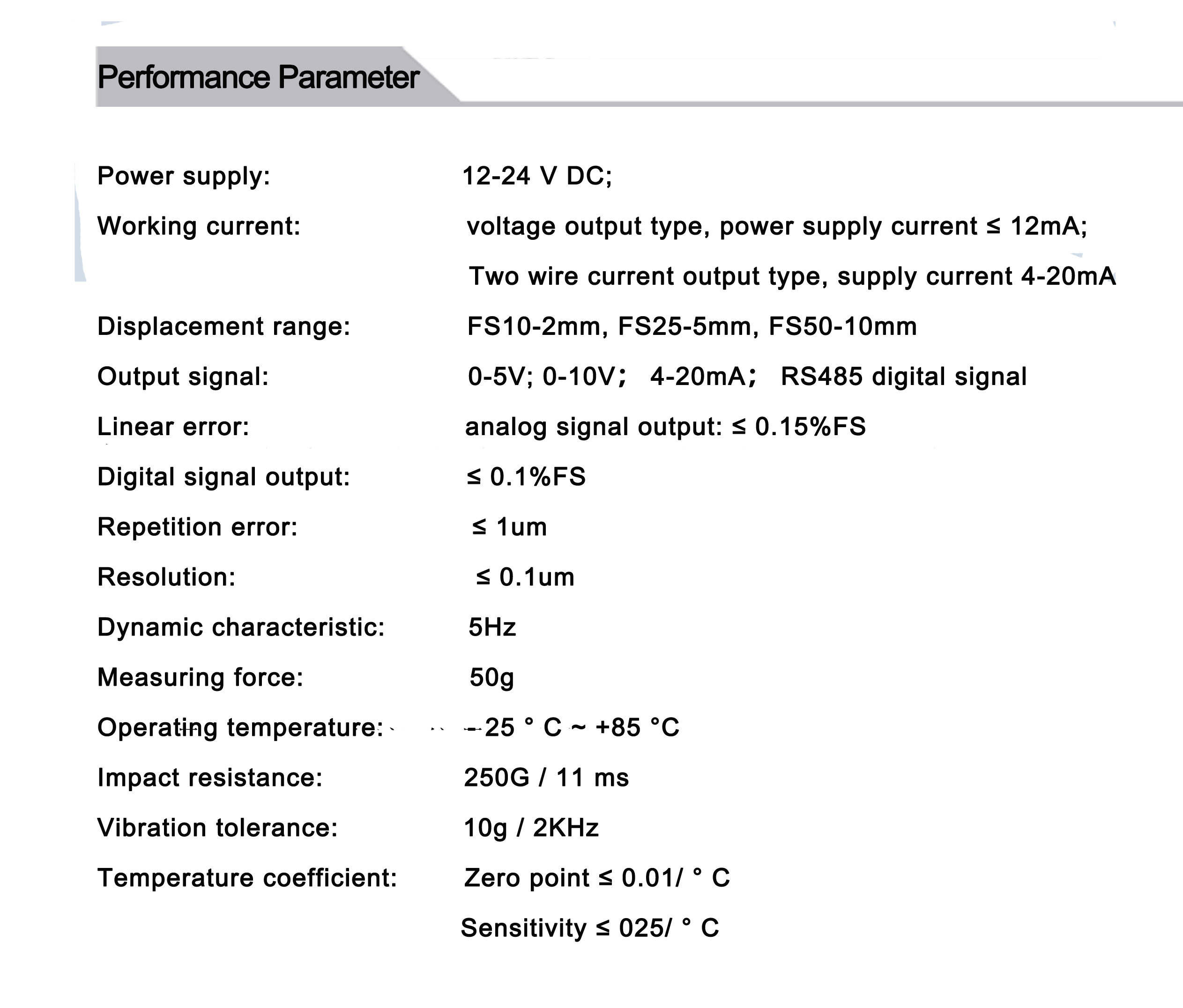

※Performance parameter
?
Power supply: ? ? ? ??12-24 V DC;
Working current: ? ? ? ?voltage output type, power supply current ≤ 12mA;
Two wire current output type, supply current 4-20mA
Displacement range: ????FS10-2mm, FS25-5mm, FS50-10mm
Output signal: ? ? ? ??0-5V; 0-10V； 4-20mA； RS485 digital signal
Linear error: ???????analog signal output: ≤ 0.15%FS
Digital signal output: ≤ 0.1%FS
Repetition error: ? ? ? ?≤ 1um
Resolution: ? ? ? ? ??≤ 0.1um
Dynamic characteristic: ???5Hz
Measuring force:? ? ? ??50g
Operating temperature: ? ??- 25 ° C — +85 °C
Impact resistance: ?????250G / 11 ms
Vibration tolerance: ????10g / 2KHz
Temperature coefficient:? ? ? ? ??Zero point ≤ 0.01/ ° C
Sensitivity ≤ 025/ ° C
